- Professional Use Air Compressor
- 3hp Single-phase Compressor
- Tank matieral steel
- 200 litre rolled air tank
- Ideal for workshop use

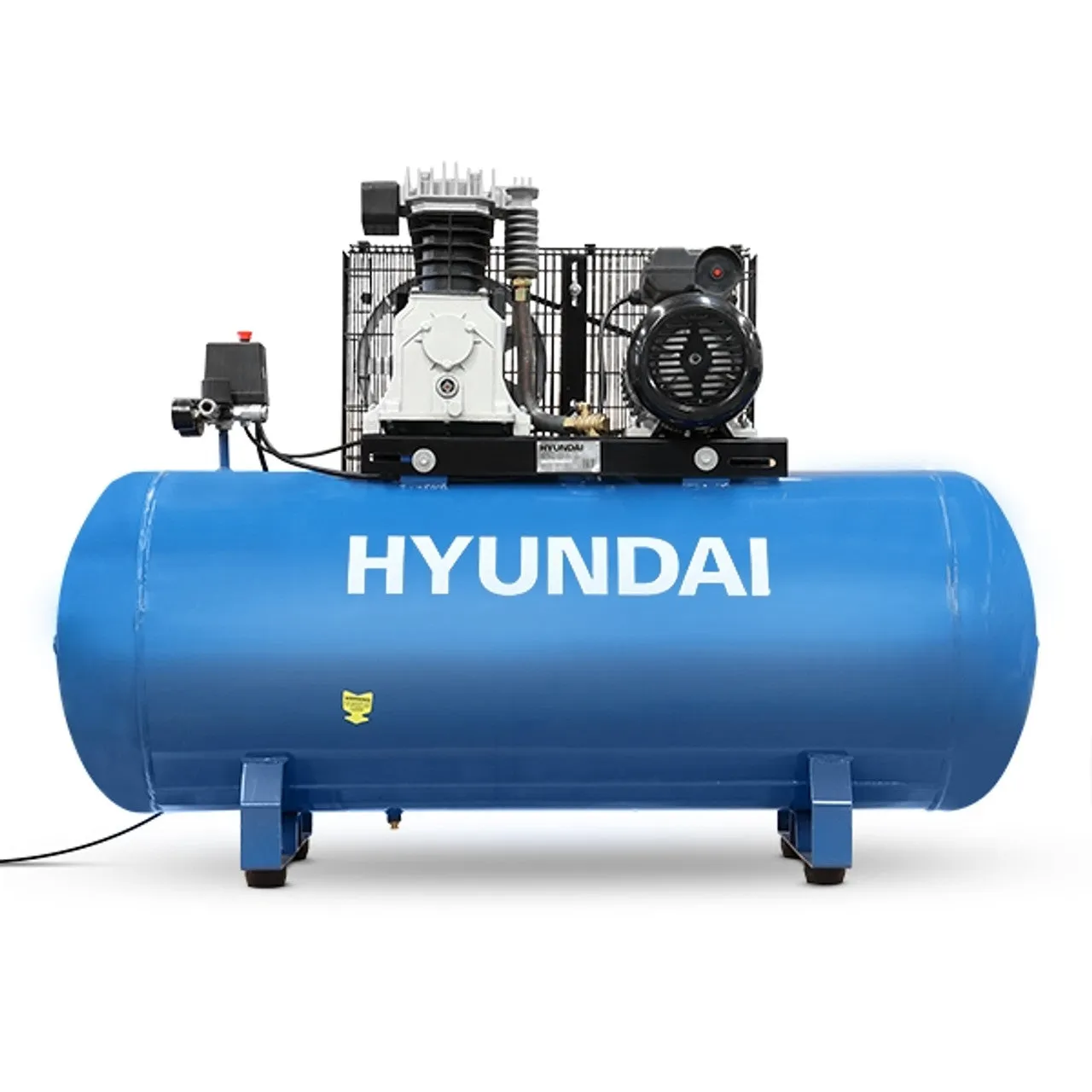

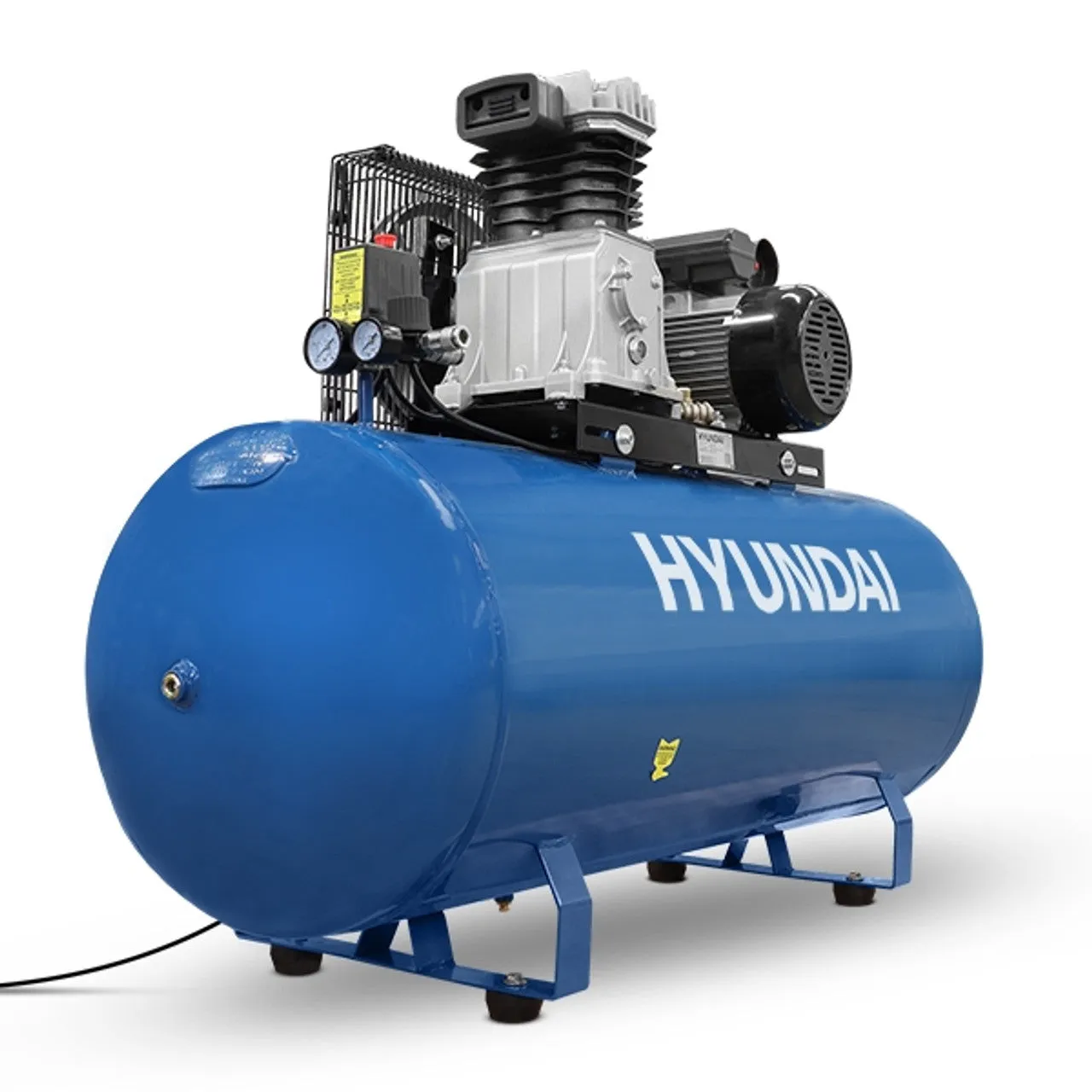

Hyundai HY3200S 200L Air Compressor 230V

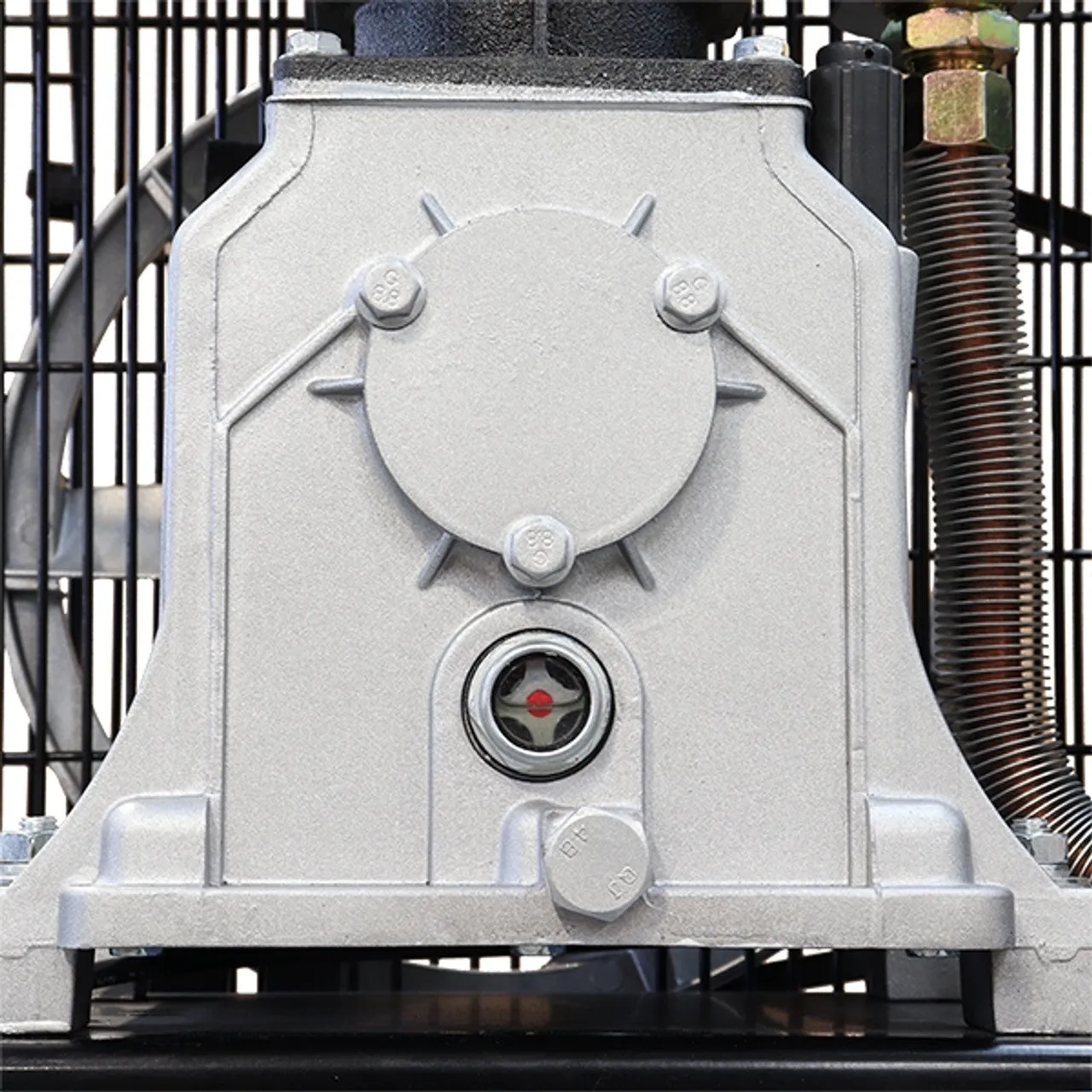

The HY3200S is slow running belt drive air compressor for professional and commercial users. built to tackle the toughest requirements on a daily basis. Equipped with a large 200L rolled steel air tank. this heavy-duty air compressor has the capacity needed for powering mechanical. industrial and workshop tasks. It's powered by a 3hp 230v electric motor and benefits from a belt drive system. which provides efficient. quiet and cool performance.The HY3200S produces a maximum pressure output of 145psi / 10bar with a displacement of 14cfm. making it the ideal choice for professional users who have demanding air-powered tools. With a tough cast iron twin cylinder block. this air compressor is built to last and conforms to all of the latest European Standards.

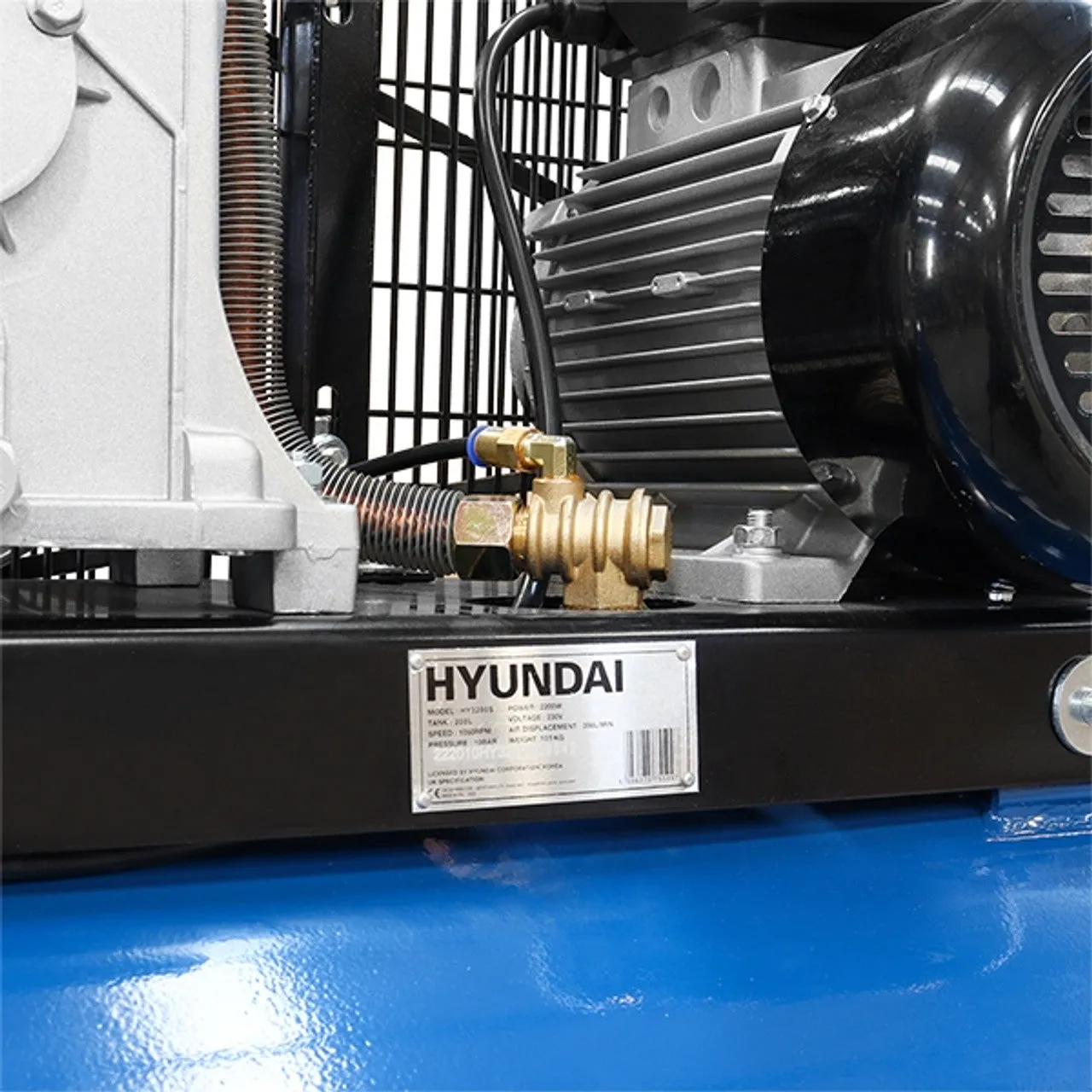

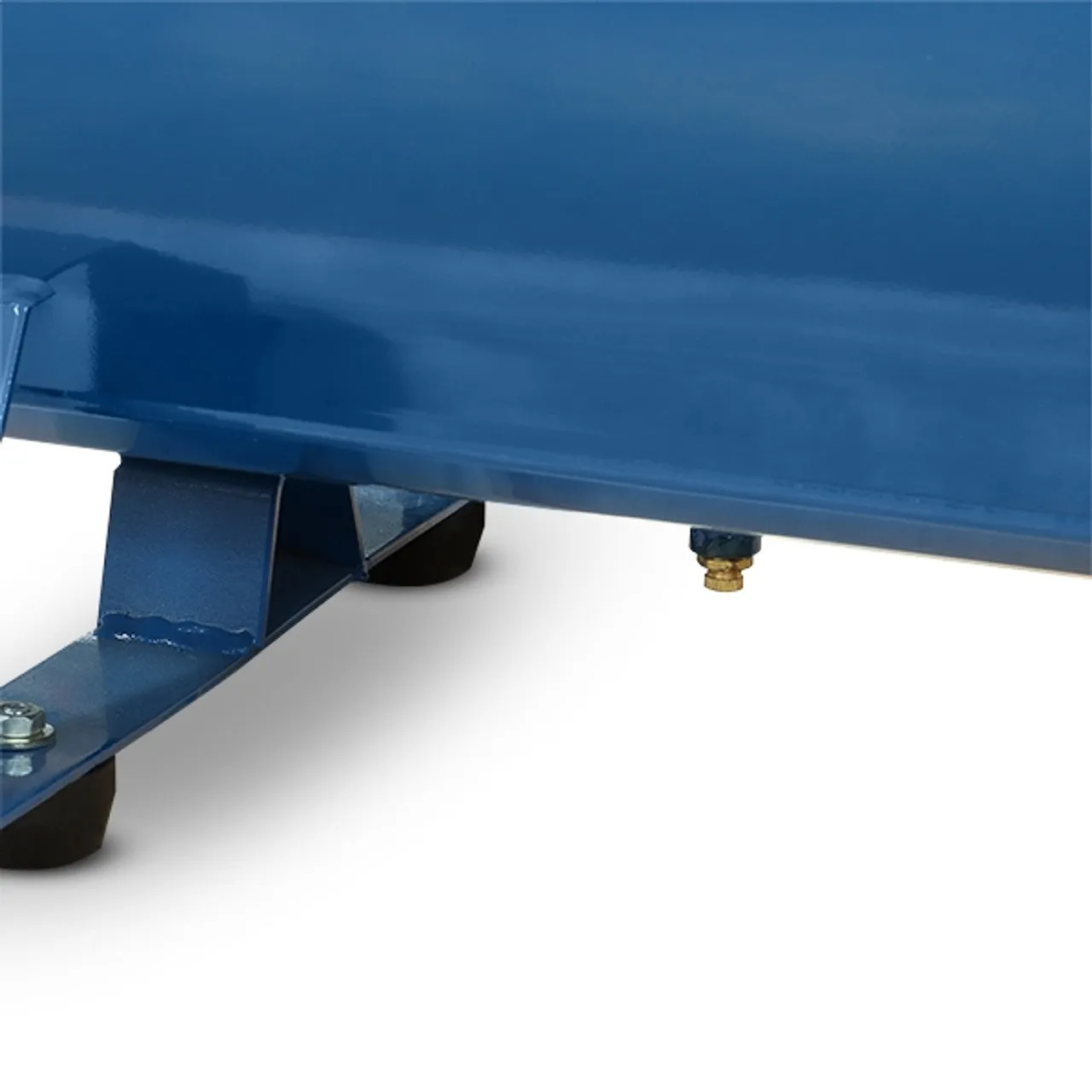

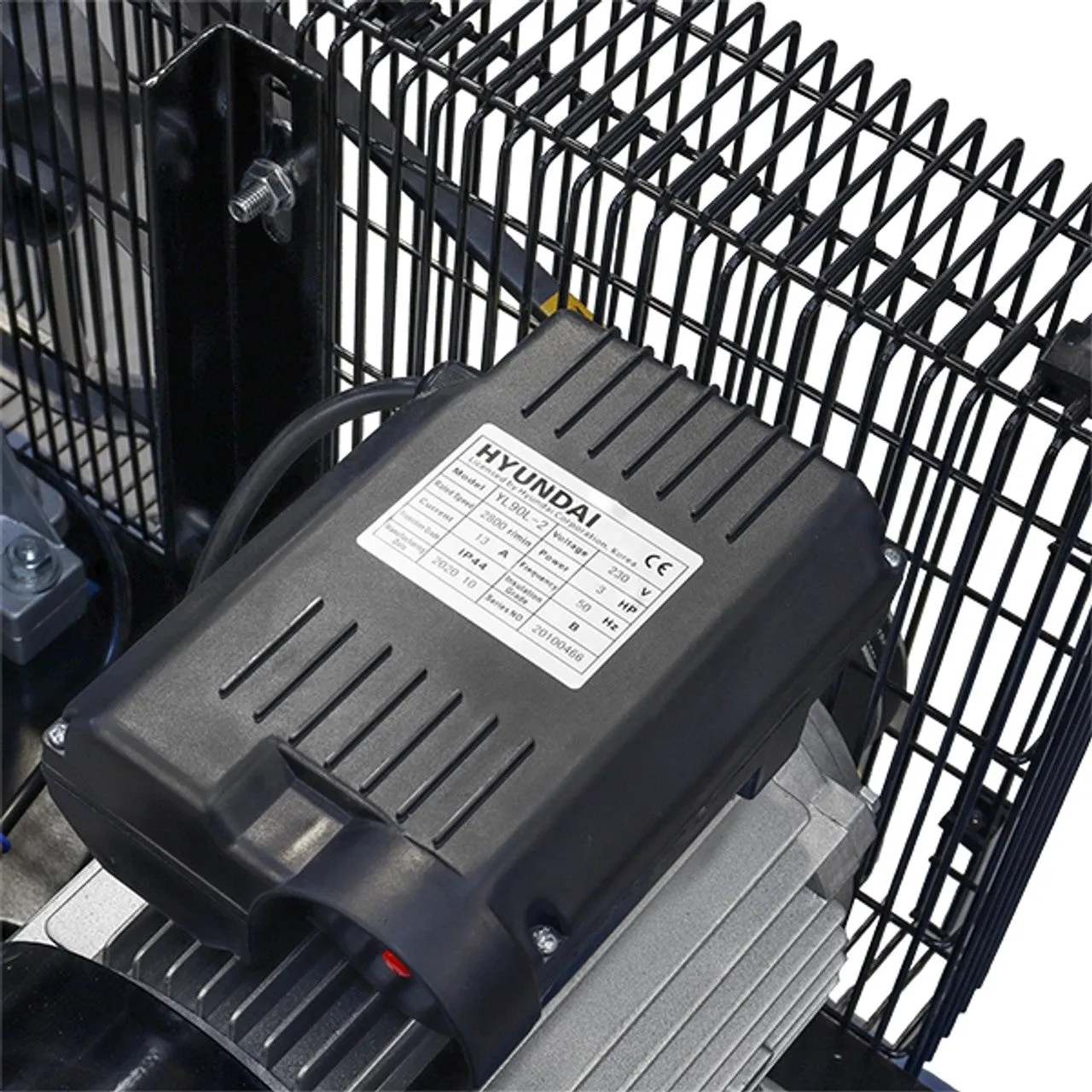

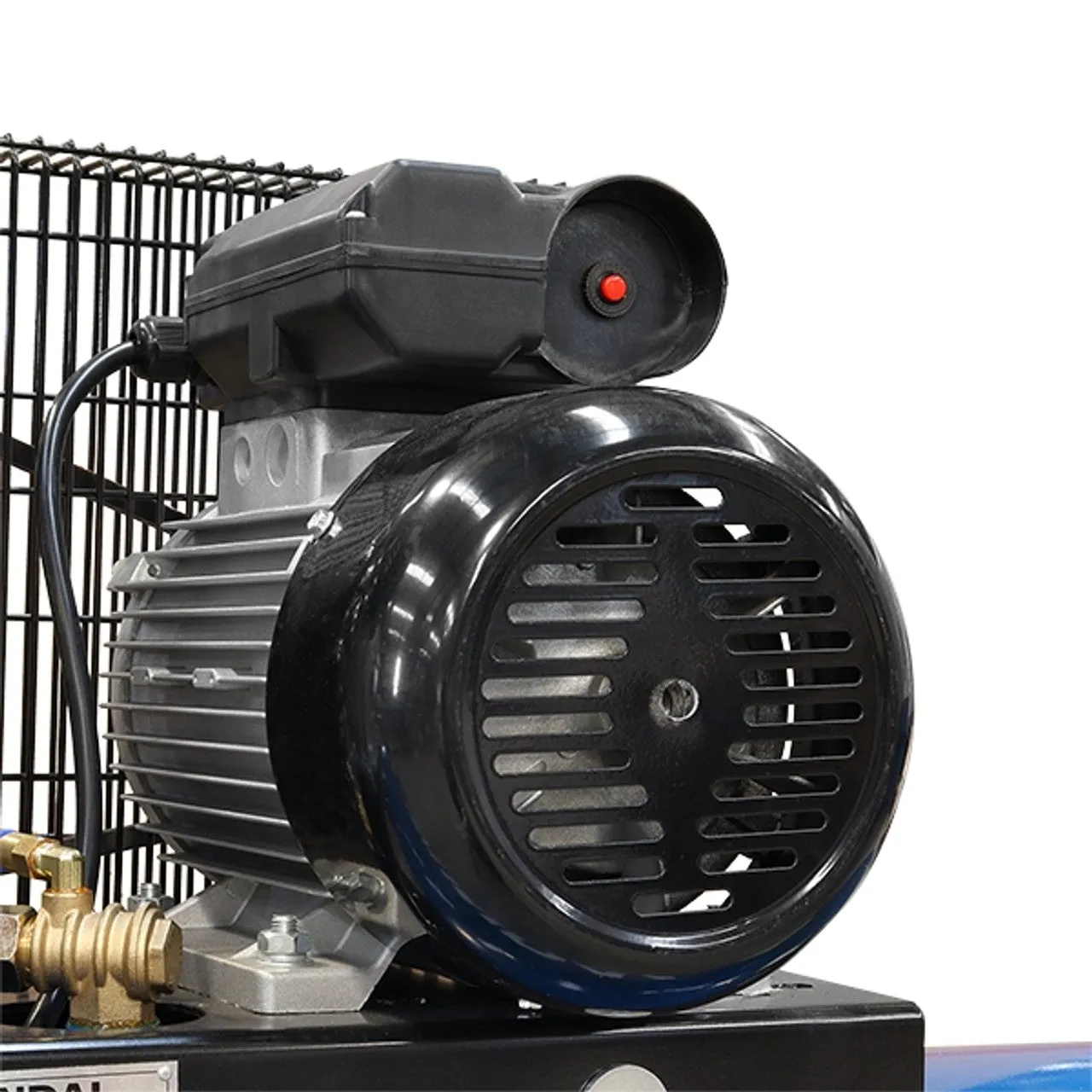

With a net weight of 110kg. the HY3200S is a large air compressor and is ideal for mechanics or engineers who need to carry out repairs in the field.Compressor Care: Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it from being misused to drain the air from the compressor tank. causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank.HY3200S compressors have a 2.2kw/2200w/3hp single phase. 230v 50hz electric motor.
Features:
HY3200S air compressor designed for commercial and professional workshop use.

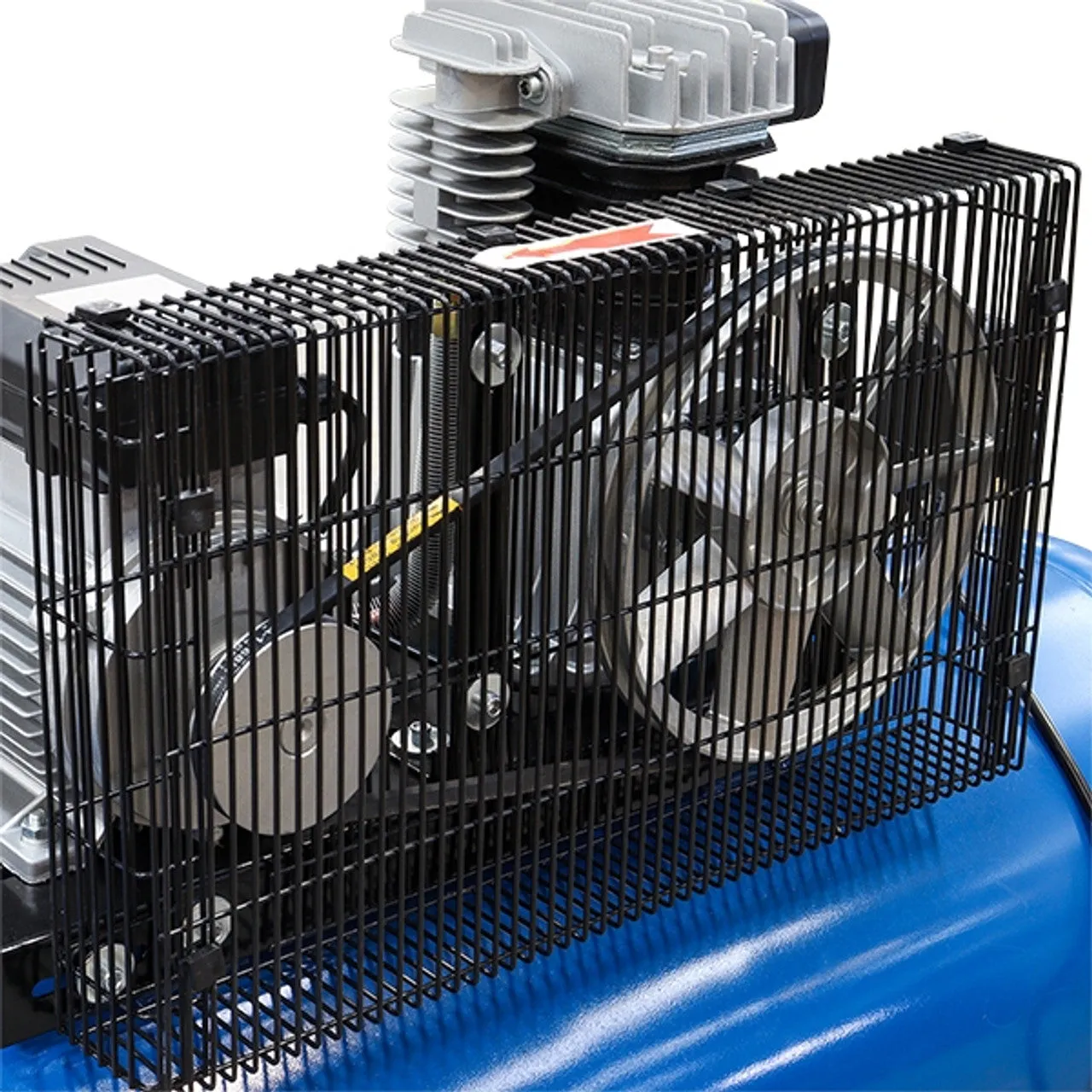

A belt drive air compressor. powered by an efficient 230v 3hp electric motor.
The large 200L rolled steel air tank provides the capacity for powering you through the most demanding of jobs.
Single phase air compressor. with a displacement of 14cfm and a maximum pressure of 145psi / 10 bar.
Ideal for workshop use.
Specification:
Model: HY3200S
Barcode: 0747150287775
Start Method: 13A UK Plug
Fuel Type / Power Source: Electric
Cable Length (m): 1.4
Stationary / Wheeled: Stationary
Drive Type: Belt Drive
Tank Capacity (L): 200
Tank Material: Steel
Cut-In Pressure (psi/bar): 116/8
Cut-Out Pressure (psi/bar): 116/8
Discharge Pressure (psi/bar): 145/10
Max Pressure (psi/bar): 145/10
Air Flow FAD (L/min): 300
Air Flow FAD (CFM): 11
Air Displacement (L/min): 396
Air Displacement (CFM): 14
Air Outlet Connection: Euro Quick Release
Outlet Pressure Regulation Type: Adjustable
Phase: Single
Voltage: 230
Rated Power (w): 2200
Motor Power kW/hp: 2.2/3
Pump (RPM): 1050
Motor Speed (RPM): 2850
Frequency (Hz): 50
Noise Level @ 7m (dB): 75
Gross Weight (kg): 115
Net Weight (kg): 105
Fully Assembled Dimensions (H x W x L) (mm): 980 x 500 x 1310
Packaged Dimensions (H x W x L) (mm): 1020 x 520 x 1360
Product Type: Air Compressor
